Our goal at PT. MITRA DAYA SISTEM SOLUSINDO (MIDASS) is to provide the greatest selection of Premium Efficiency GEARED MOTOR, GEARBOXES, FREQUENCY INVERTERS, and mechanical accessories for the lowest prices in the business. Our team works closely with WORLD CLASS manufacturer to keep prices low while ensuring the highest quality products. Save money on your next repair or replacement, and visit our store today.
WG 20 PRODUCT LINE
HELICAL GEARED MOTORS C
The helical gear units come in 12 housing sizes for nominal torques from 50 to 18,000 Nm and are available in both foot and flange designs. While the two smaller gear units (C00 and C01) are able to perform to their full potential with just two stages, the larger C03 to C16 are available in both two and three-stage versions, for those applications in higher torque ranges.
PARALLEL SHAFT GEARED MOTORS F
Thanks to their structural design, parallel shaft gear units are particularly suitable for conveyor technology applications. All 11 sizes can be fitted with either a hollow shaft, output shaft, mounting flange or shrink disc. The ratio range of gear unit sizes F04 to F15 can be extended by a third gear stage.
HELICAL BEVEL GEARED MOTORS K
Helical bevel gear units are suitable for a multitude of applications. The two-stage basic design is extended by a third gear stage upward of 200 Nm. K gear units can also be equipped with a hollow shaft, output shaft, shrink disc, torque arm and mounting flange.
WATT MAS® LINE
WATT MAS®
HELICAL GEARED MOTOR
Power: 0.12 - 55 kW
Torque: 100 - 14,000 Nm
Ratio: 2.4 - 13,500
UNIBLOCK® design for foot and flange mounting. Gear hous- ing machined on all sides for universal application.
Optimized gearing geometry here and in all the other models results in exceptional running smoothness. For special envi- ronmental conditions the gear unit can be fitted with two shaft seals.
%20G.png)
WATT MAS®
SINGLE STAGE HELICAL GEARED MOTOR
Power: 0.12 - 37 kW
Torque: 23 - 1,200 Nm
Ratio: 0.8 - 11
Wherever high drive power at small gear reduction is needed (e.g. pump industry) this gear series unfolds its advantages. Those gears have very high efficiency rates through the single- stage design, which creates energy saving drive solutions on using high-efficiency motors.
WATT MAS®
SHAFT MOUNTED GEARED MOTOR
Power: 0.12 - 30 kW
Torque: 27 - 2,800 Nm
Ratio: 0.8 - 4,000
In addition to the benefits of the parallel shaft geared motor, this is an extremely economical model, especially for shaft and flange mounting. Special double chamber shaft seals developed by Watt Drive are used as standard, as in the par- allel shaft geared motor.
WATT MAS®
PARALLEL SHAFT GEARED MOTOR
Power: 0.12 - 55 kW
Torque: 5,000 - 14,000 Nm
Ratio: 4 - 18,800
The UNIBLOCK® gear housing machined on all sides, the particularly stable housing and minimum outside dimensions enable diverse mounting options and applications.
As aresult, these motors often form an integral part of our customers machine designs. High precision manufacturing and top gearing quality guarantee minimum backlash in Watt Drive gear units.
WATT MAS®
HELICAL BEVEL GEARED MOTOR
Power: 0.12 - 90 kW
Torque: 100 - 20,000 Nm
Ratio: 5.5 - 8,600
The compact and structure optimized gear housing of the helical bevel gears distinguish themselves by being machined on all sides and are therefore, ready for a variety of mounting options and applications. The unique motor position provides an almost flat and easy to mount on ”machine interface”. Vari- ous standard shaft executions and the double chamber shaft seals, developed by Watt Drive, are ready for use. Shaft and flange dimensions are equal to our helical worm gears.
WATT MAS®

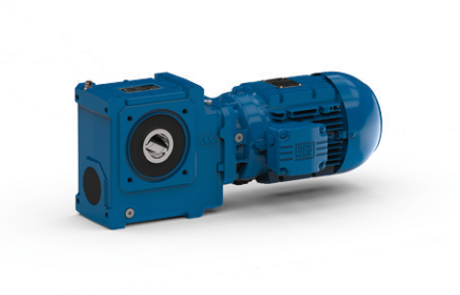

HELICAL WORM GEARED MOTOR
Power: 0.12 - 7.5 kW
Torque: 50 - 1,300 Nm
Ratio: 3 - 3,400
Due to the unique combination of optimized worm wheel material with special lubricants, optimized shape, this powerful motor achieves high levels of efficiency and torque. The housing machined on all sides enables diverse mounting options. Double chamber shaft seals are used as standard. The low contour design makes it suitable for implementing applications e.g. in the food industry. The housing has no recesses, which simplifies cleaning - a particularly essential feature for areas with stringent hygiene requirements.
WATT MAS® LINE
Watt Drive Agitator Gearboxes -
Energy efficient drive packages for the environmental industry
WATT MAS® LINE
Watt Drive Agitator Gearboxes -
Energy efficient drive packages for the environmental industry
In times of ever growing energy costs and energy consumption, the constant efficiency increase of drive components has become a central leading issue. Highly efficient gear motors with reduced power losses, compact dimensions and various options for the environmental industry, lower the accruing operating costs.
WATT MAS®
SHAFT MOUNTED GEARED MOTORS AR SERIES
Power: 0,12 - 30 kW
Torque: 400 - 2.800 Nm
Ratio: 4 - 4.000
Low life-circle costs through high efficient drive technique (IE2/IE3)
Geometry optimised gearings improve the energy balance of the gears
Compact, versatile gear housings save installation spaces
Long life span through robust designed system components
Little system losses, thus smaller radiant heat
Modular system for the solution of customer specific applications
WATT MAS®
SHAFT MOUNTED GEARED MOTORS FR SERIES
Power: 0,12 - 55 kW
Torque: 5.000 - 14.000 Nm
Ratio: 4 - 18.800
Corrosion prevention and surface protection
If agitator drives are to be installed outside or in humid locations, measures against corrosion should be taken. The WATT EUSAS® motors can optionally be equipped with additional protective measures according to higher climatic requirements. The gear motors are protected by various varnish systems.
WATT MAS®
SHAFT MOUNTED GEARED MOTORS KR SERIES
Power: 0,12 - 55 kW
Torque: 1.000 - 14.000 Nm
Ratio: 5,7 - 8.600
Brakes in corrosion-protected design
Protection cap (SD)
Stainless name plates
Stainless vent plug
Shafts out of stainless material
Condensate water drainage hole
Climatic protection
Motors with anti-condensation heating
Surface protection LA0 to LA6
The agitator gearboxes can as well be implemented in explosion-prone areas according to ATEX 95.
The drives comply with all requirements for equipment used in explosion-prone areas. Agitator gearboxes with system adapters can be equally used in the categories M2, 2 and 3 as the standard drives.
MODULAR SYSTEM MOTOR
MOTOR WITH SPECIAL CONNECT SYSTEM
(MIG BOX)
MOTOR WITH SPECIAL TERMINAL BOX (MIP BOX)
MOTOR WITH ENCODER (OUTSIDE FAN COVER)
BRAKE MOTOR NON-VENTILATED WITH DOUBLE BRAKE AND ENCODER
BRAKE MOTOR WITH MANUAL RELEASE AND RESOLVER
BRAKE MOTOR WITH ENCODER AND FORCE COOLING
BRAKE MOTOR WITH MANUAL RELEASE, LOCKING DEVICE AND SECOND SHAFT END
DRIVES SYSTEM SOLUTION
Frequency Inverter Product Lines
CFW500 - MACHINERY DRIVE
The CFW500 has advanced technology plug and play options, developed for fast commissioning, providing great flexibility and competitive advantage while offering excellent performance and reliability. Designed for exclusively industrial or professional use, is perfect for OEM, system integrators, panel installers and End Users providing great benefit from the added value.
MW500 - DECENTRALIZED VSD - MOTORDRIVE
The MW500 is a high performance product dedicated for induction motor control, with embedded features and a high protection degree of IP66 / NEMA 4X which allow decentralized installation directly on the motor or on a wall. Designed exclusively for industrial or professional use, the decentralized WEG VSD adds a great deal of flexibility, allowing the user to install the product near to the controlled motor, thus eliminating the necessity of long cables and panels.

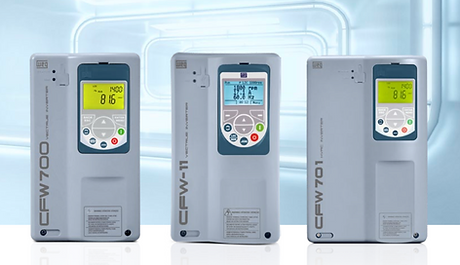

CFW700 - GENERAL PURPOSE DRIVE
Designed for controlling squirrel cage three-phase induction motors the new CFW700 is a general purpose drive that gives costumers the flexibility needed for the control of applications ranging from simple speed control to more demanding ones as torque control. Based on the plug and play technology concept where by plugging in expansion modules hardware and software recognize it automatically.
